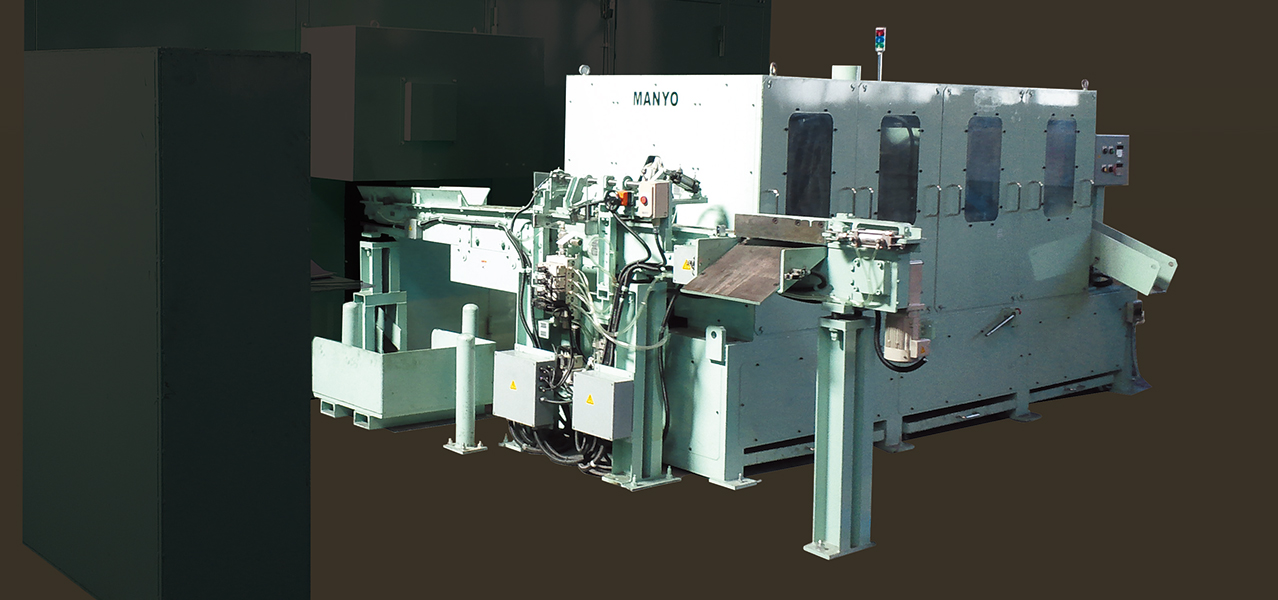

Billet Corner Rounder
Compact high-tech machine chamfers round bars fully automatically.
"Touch panel makes operation simple."
Chamfer amount can be adjusted quickly and simply by touch panel operation.
"Uniform and fine chamfering can be achieved regardless of roundness of billet."
Video
-
Billet Corner Rounder
Standard specs
| Model | OCH 3050 | OCH 5080 | OCH 8012 |
|---|---|---|---|
| Applicable work dia. | Φ30〜Φ50 | Φ50〜Φ80 | Φ80〜Φ120 |
| Applicable work length | L/D＝1〜2.5＊ | L/D＝1〜2.5＊ | L/D＝1〜2.5＊ |
| Capacity(* Inverter variable system) | Max. 1 sec/pc | Max. 1 sec/pc | Max. 1.5 sec/pc |
| Grinding system | Belt grinding system | Belt grinding system | Belt grinding system |
| Conveyance and discharge system | Chain conveyor system | Chain conveyor system | Chain conveyor system |
| Specification setting system | Touch panel input | Touch panel input | Touch panel input |
| Control system | PLC control | PLC control | PLC control |
| Unloading and loading error alarm | YES | YES | YES |
| Power supply | AC200V | AC200V | AC200V |
| Supply air pressure | 4.5MPa～5MPa | 4.5MPa～5MPa | 4.5MPa～5MPa |
| External size of machine（FB×LR×H） | 1.8m×2.5m×2.2m | 2.0m×2.7m×2.2m | 2.2m×2.9m×2.2m |
※Specifications above may be modified to meet users’ demands.
